Presentation
| Product range | PW15 Display |
| Product type | Power Supply Board |
Sale package
| Pack | Blister |

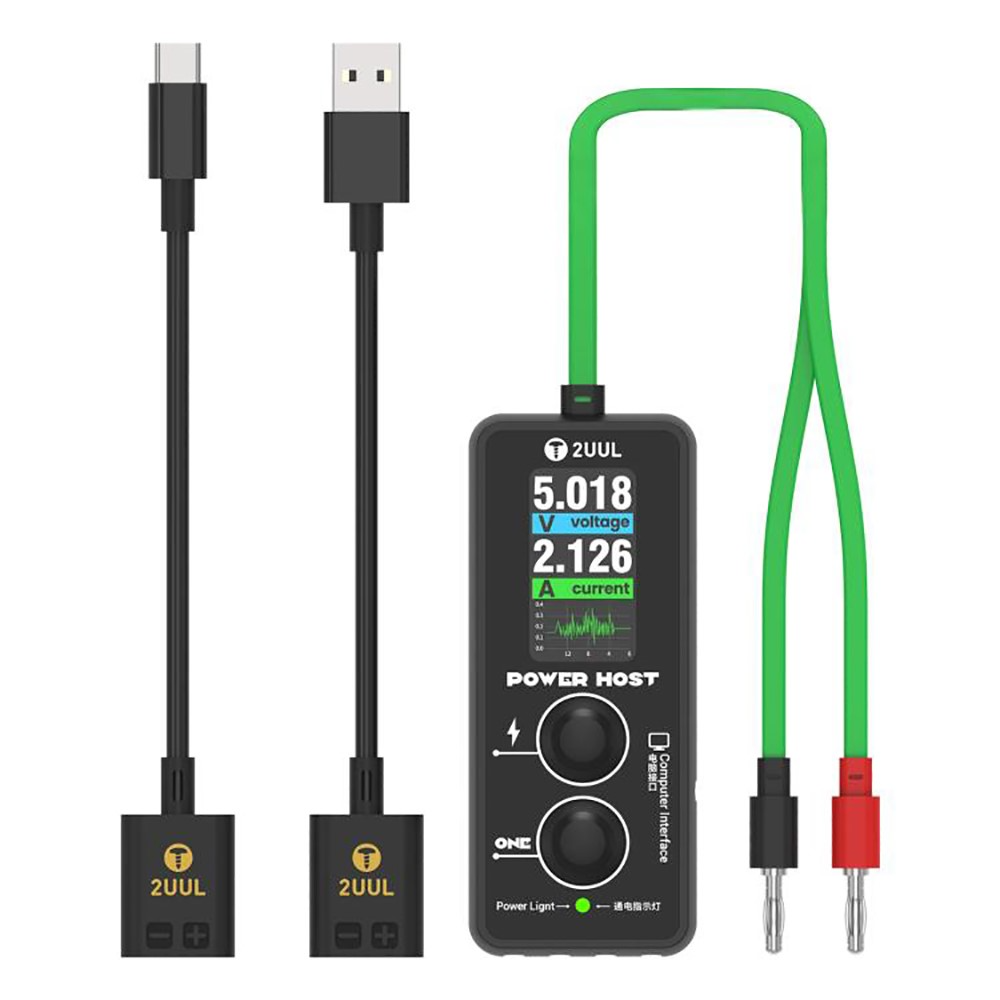

| Content | Power Supply Board / USB Cable / USB-C Cable |
| Product status | New |
2UUL PW15 Display Board Power Supply
The intelligent power supply for 2UUL PW15 motherboards is a compact digital station for high-precision diagnosis and monitoring,
essential for quickly identifying faults in smartphone and laptop circuits. This advanced device
is equipped with a color LCD screen that displays current and voltage in real time with three decimal places accuracy, also generating graphs
and oscilloscope waves (dynamic waveform) for a complete visual analysis of power consumption. The module features a dedicated "ONE" button
that simulates the motherboard start signal without needing the complete phone assembly, while also providing intelligent protection

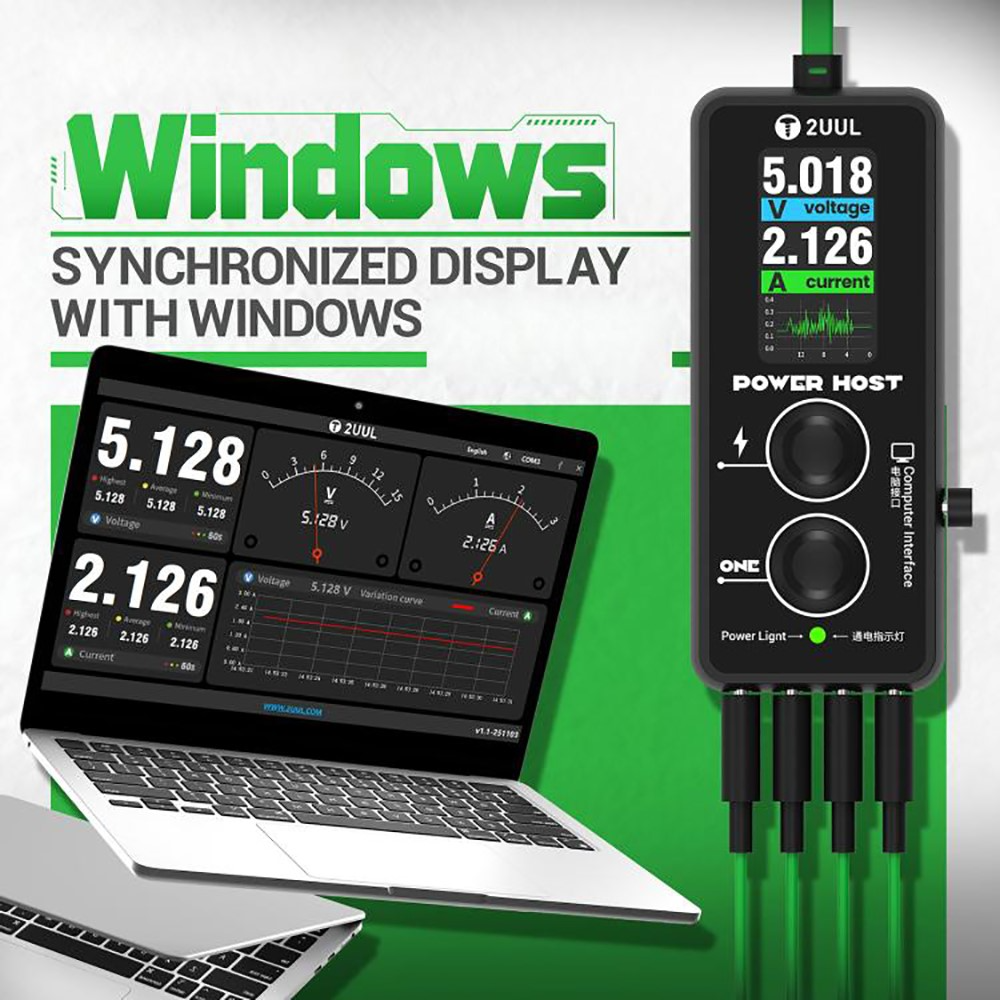

against overvoltage at 5.2V with automatic shutdown and alarm. By integrating a PC interface for Windows,
technicians can synchronize saved data, charts, and historical curves directly on the monitor for advanced troubleshooting.
Features:
- Monitoring: LCD screen for graphical display of waves, voltage (V), and current (A) with 3 decimal places

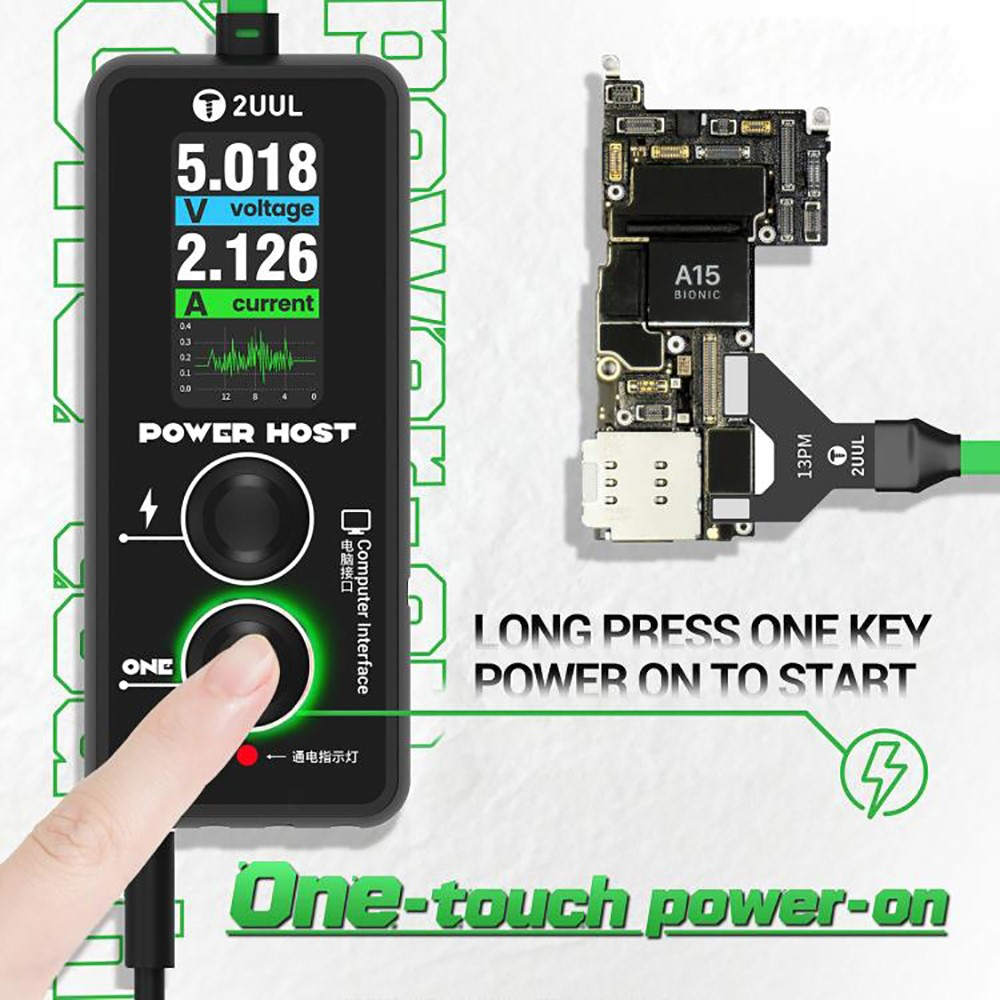

- Special function: Dedicated "ONE" button to simulate the motherboard start signal

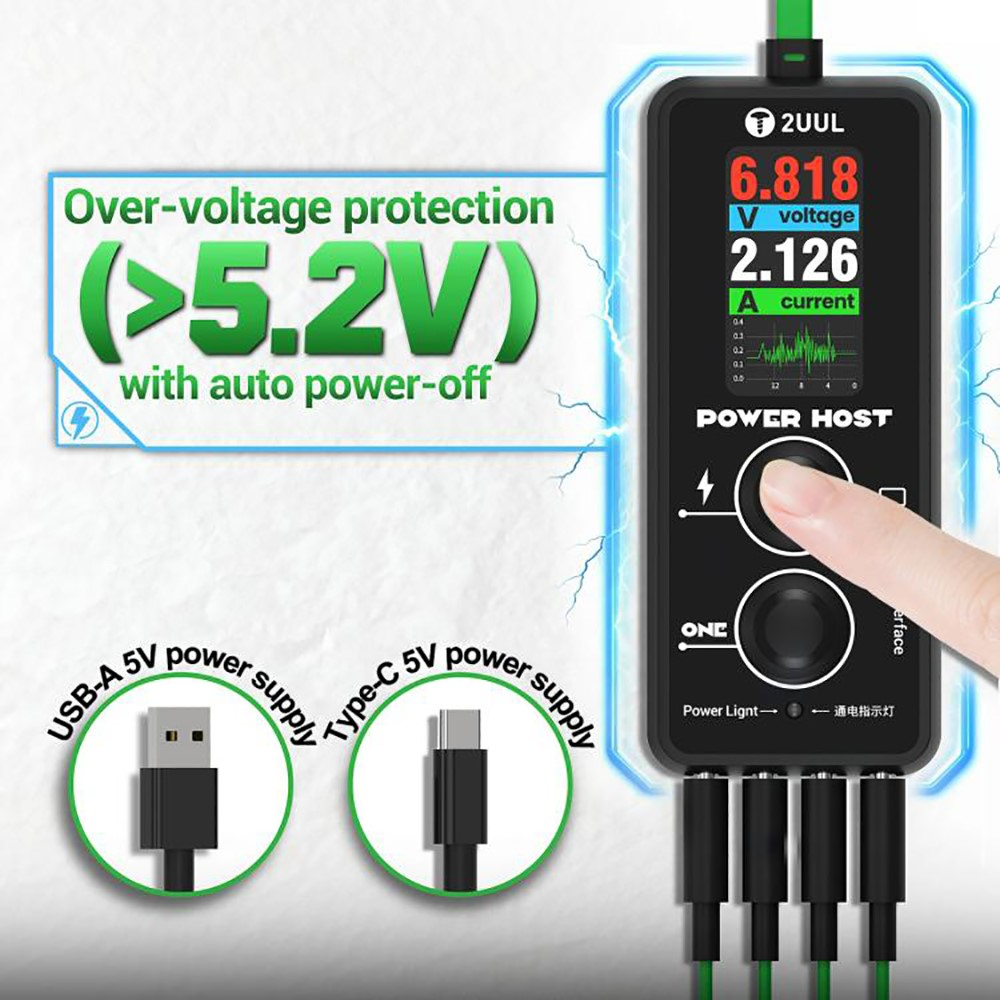

- Safety: Automatic protection system and overvoltage alarm (automatic shutdown at 5.2V)
- Connectivity: USB-A port, USB-C port (5V input), 4mm banana plugs, and PC interface (Windows)

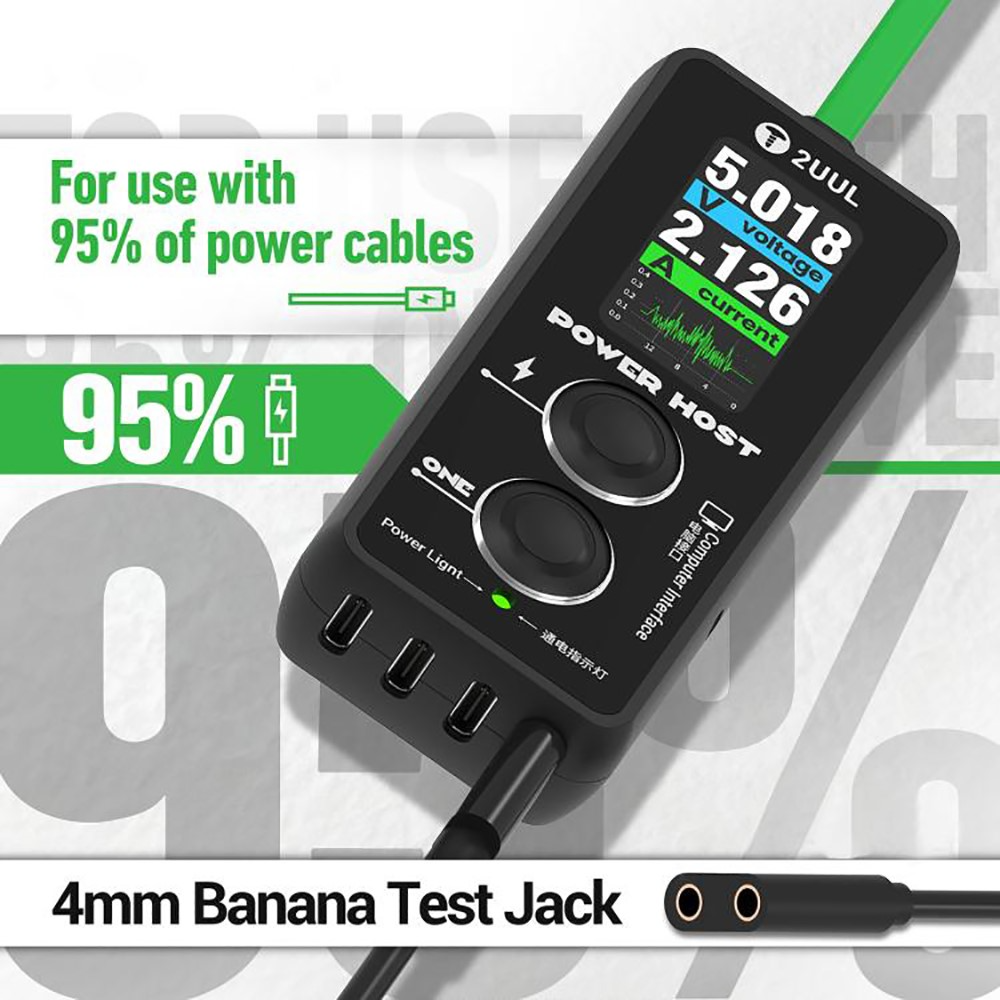

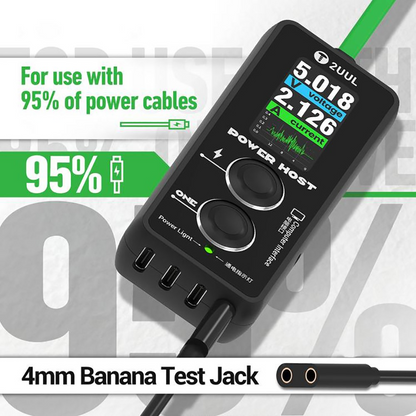

- Cable compatibility: Universal, supports approximately 95% of power cables on the market
- Application: Short circuit identification, standby power consumption analysis, and advanced GSM/PC repairs
