Microscope RF4 RF-7050TVP

Name: Microscope RF4 RF-7050TVP
Brand: RF4
SKU: 384710
Price: 293.32 CHF
Availability: InStock

ID: 384710

EAN: 6973331241098

CHF 293.32

Taxes included. Shipping calculated at checkout.

Warranty: 12 months

Low stock

Quantity

Delivery on time guaranteed

Receive your order on time with the help of our efficient and reliable delivery services.

Expert support team

From product questions to after-sales support, our team of specialists is here to help.

Return the product

If you are not completely satisfied with your purchase, please contact our customer service team. See more

View full details

Presentation

Product range	RF-7050TVP
Product type	Microscope

Sale package

Pack	Blister
Content	Accessories / Led Lamp / Microscope
Product status	New

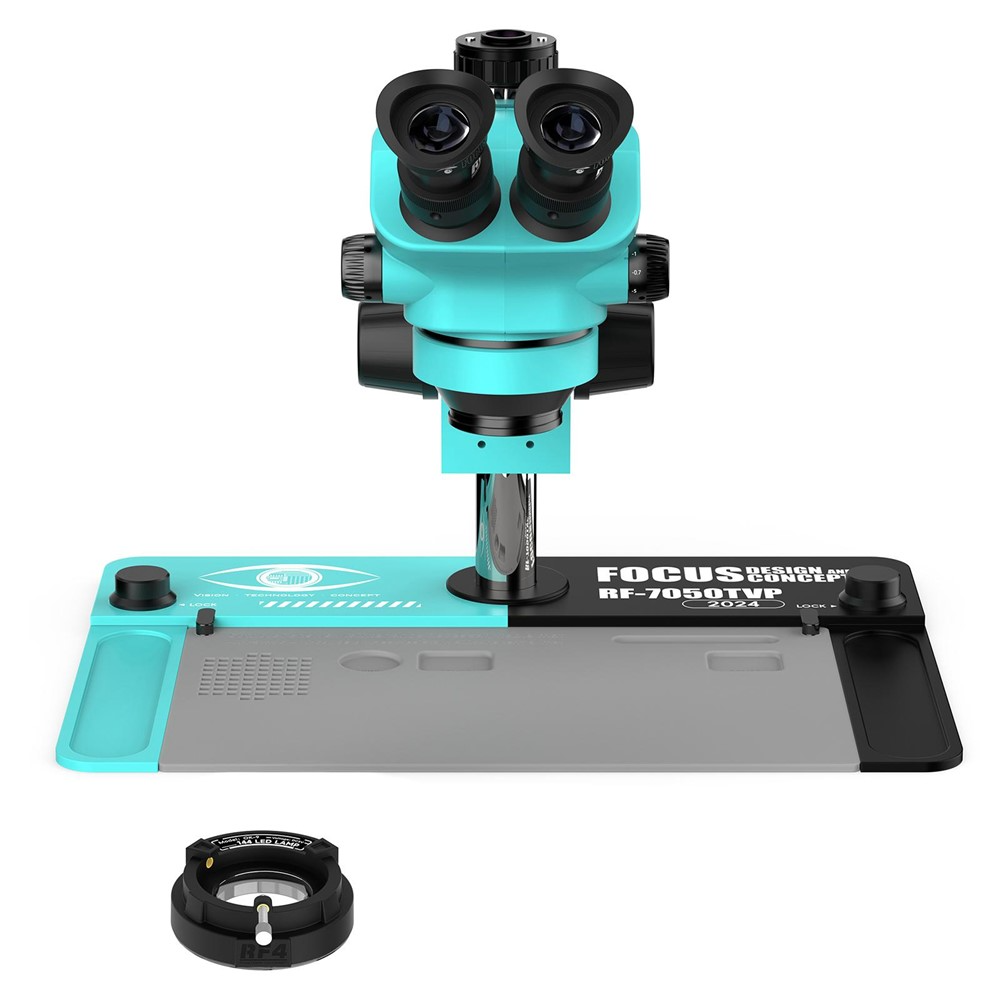

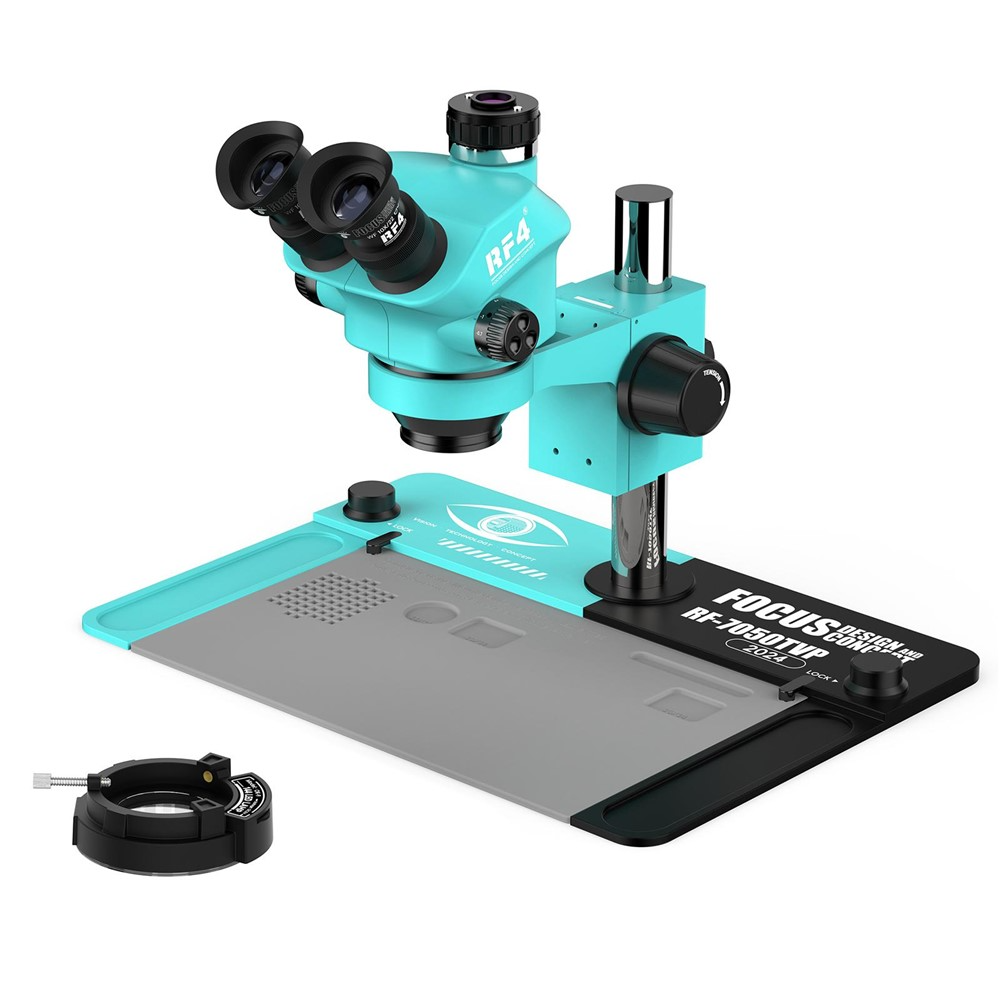

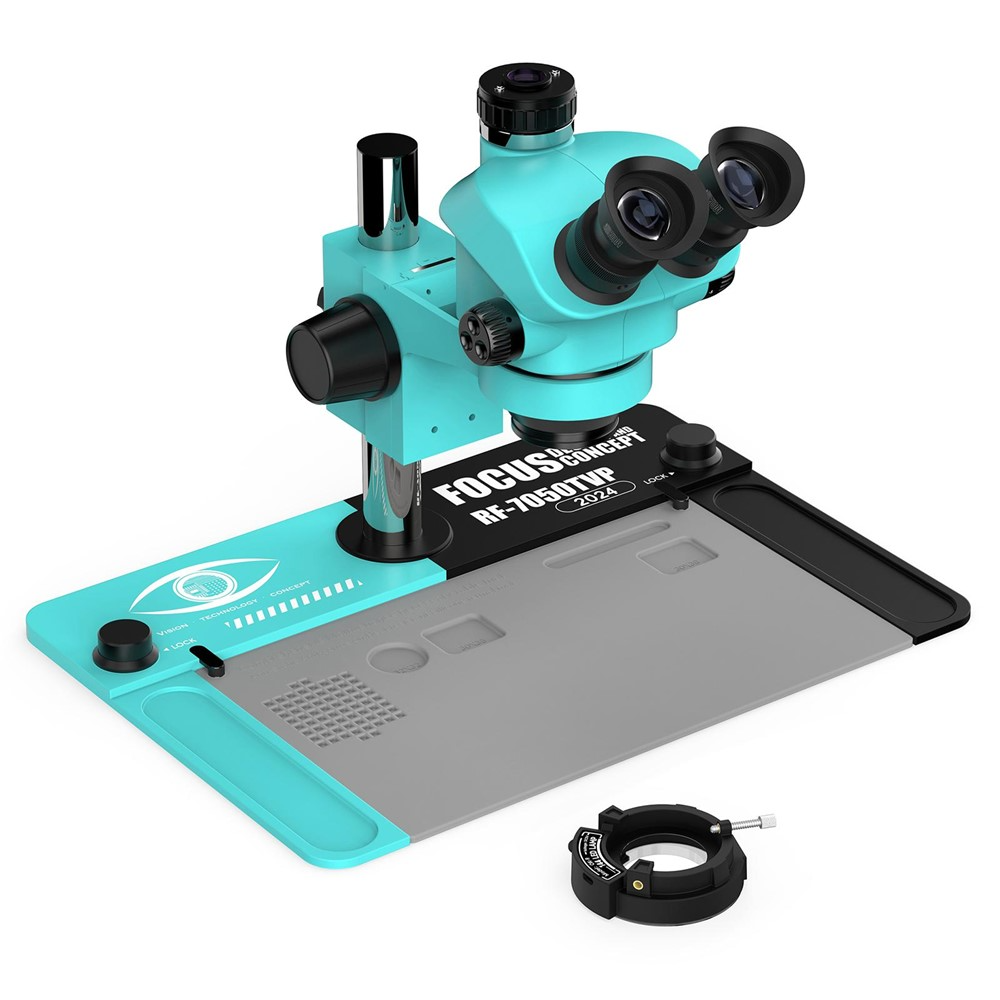

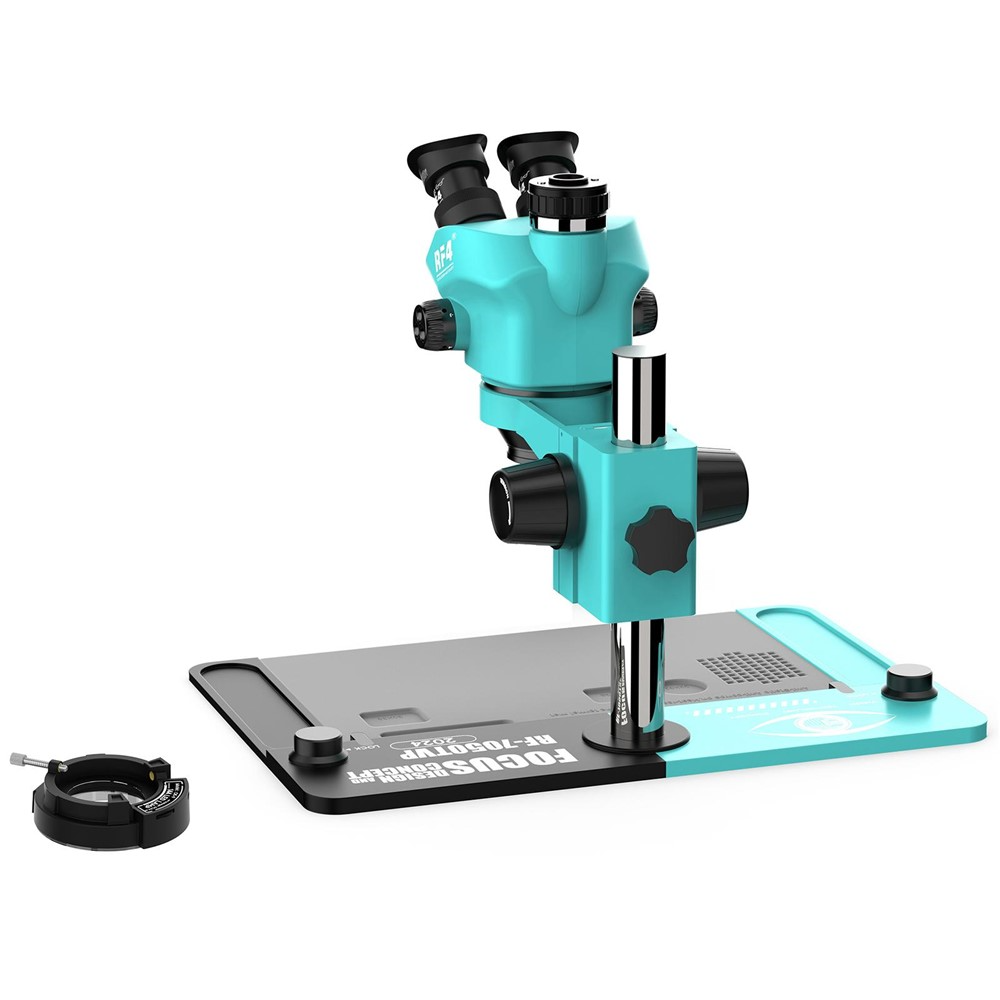

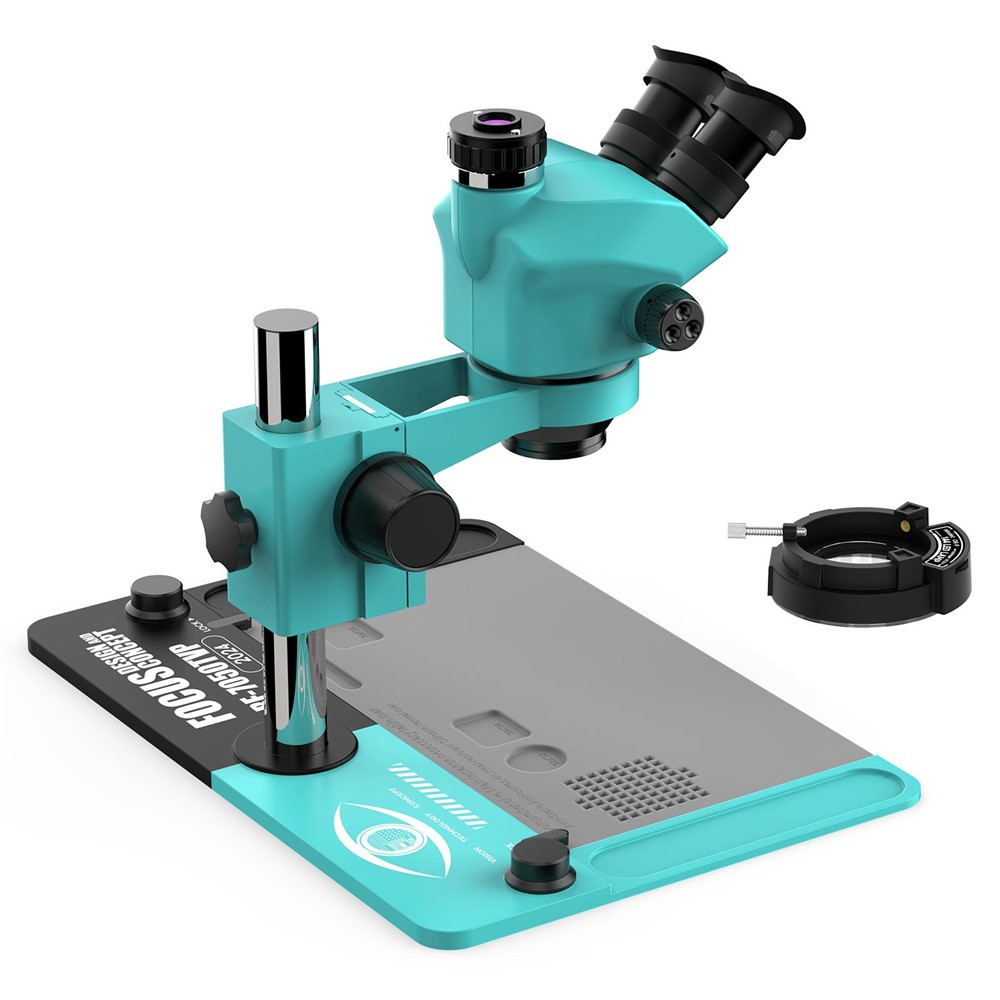

RF4 RF-7050TVP Microscope

The RF4 RF-7050TVP microscope offers you a high-precision optical solution, specially designed for delicate micro-welding operations,

PCB repairs, and electronic component inspection. The trinocular observation head allows simultaneous viewing through the eyepieces

and connection of a dedicated camera via the included 0.5x CTV adapter. Equipped with a continuous mechanical zoom

ranging from 7x to 50x (objective 0.7x - 5x) and a set of high-clarity WF10X/22mm eyepieces, the microscope ensures

a wide field of view and extremely clear images across the entire analyzed surface.

Advanced Ergonomics and Lighting System

Both eyepiece tubes feature diopter adjustment (+/-5DP), allowing you to adapt the viewing to your visual needs without the need

to wear glasses during work, significantly reducing eye fatigue during long sessions. The ring lamp

with 144 adjustable LEDs provides strong, directed, and shadow-free light at the standard

working distance of 100 mm, while maintaining free maneuvering space for a soldering iron, blower, or clips.

Features:

- Magnification factor: continuous zoom 7x - 50x (objective 0.7x - 5.0x)

- Eyepieces: WF10X/22mm with wide field of view and anti-reflective coated lenses

- Diopter adjustment: +/-5DP on both eyepieces

- Camera adapter: 0.5x CTV included

- Working distance: 100 mm

- Lighting: ring lamp with 144 LEDs with adjustable intensity

- Usage: BGA part inspection, integrated circuit soldering, phone servicing, and micro-welding

Package contents:

- Microscope

- Accessories

- LED Lamp
